• Painted front bumper
• Painted rear step bumper w/safety chain holes
• Wheel flares
• Black spoiler
• Black windshield surround moldings
• Painted grille w/painted molding
• Aero headlights
• Tri-color tail lights
• Dual black sail-mounted mirrors
• Tinted glass
• Dual intermittent windshield washers
• Easily removable tailgate w/black handle
• Black front/rear mud flaps

• 60/40 cloth split bench seat
• Black vinyl floor covering w/insulation
• Floor consolette w/dual cupholders
• Black door sill scuff plates
• Black plastic steering wheel
• Fuel/temp/oil pressure gauges & voltmeter
• Tachometer
• Trip odometer
• Inside hood release
• Electronic AM/FM stereo radio w/digital clock, 4 speakers
• Color-keyed full-width instrument panel pad-inc: side window demisters, air registers, color-keyed applique
• (3) 12 volt pwr points
• Driver's door illuminated entry
• Warning chimes-inc: headlights-on, key-in-ignition, seat belt
• Color-keyed glove box
• Ash tray
• Cigarette lighter
• Color-keyed interior A/B-pillar moldings
• Day/night interior rearview mirror
• Color-keyed plastic door trim panels w/padded armrest & black door handles
• Color-keyed headliner w/sound insulation & passenger assist handle
• Color-keyed cloth sun visors w/RH mirror, LH strap
• Color-keyed rear-of-cab coat hook
• Dual door-operated front dome light
• Locking rear storage compartment

• Driver air bag
• Rear-wheel anti-lock brake system
• Adjustable height front shoulder safety belts
• Single-note horn

3.0L (182) SEFI V6 ENGINE

• (STD)

• Mileage
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 7.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2420
• Gross Axle Wt Rating - Rear (lbs): 2570
• Curb Weight - Front (lbs): 2179
• Curb Weight - Rear (lbs): 1471
• Gross Vehicle Weight Rating Cap (lbs): 4920
• Gross Combined Wt Rating (lbs): 6000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2420
• Spring Capacity - Rear (lbs): 2570
• Axle Type - Front: Twin-Traction Beam
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30.5
• Shock Absorber Diameter - Rear (mm): 30.5
• Stabilizer Bar Diameter - Front (in): 1.0
• Stabilizer Bar Diameter - Rear (in): 1.2
• Brakes
• Brake Type: Power
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.28 x 1.33
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 10.0 x 2.50
• Tires
• Front Tire Order Code: T7F
• Rear Tire Order Code: T7F
• Front Tire Size: P215/75R15SL
• Rear Tire Size: P215/75R15SL
• Spare Tire Size: P215/75R15SL
• Front Tire Capacity (lbs): 1583
• Rear Tire Capacity (lbs): 1583
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: 750
• Revolutions/Mile @ 45 mph - Rear: 750
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15.0 x 6.0
• Rear Wheel Size (in): 15.0 x 6.0
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 19.0
• Turning Diameter - Curb to Curb (ft): 42.39
• Turning Diameter - Wall to Wall (ft): 44.46
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.4
• Length, Overall w/o rear bumper (in): 201.5
• Width, Max w/o mirrors (in): 69.4
• Height, Overall (in): 67.8
• Overhang, Front (in): 33.3
• Overhang, Rear w/o bumper (in): 39.5
• Front Bumper to Back of Cab (in): 121.0
• Cab to Axle (in): 37.7
• Cab to End of Frame (in): 72.9
• Ground to Top of Load Floor (in): 28.3
• Frame Width, Rear (in): 33.0
• Ground Clearance, Rear (in): 7.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 71.8
• Cargo Box Width @ Top, Rear (in): 51.9
• Cargo Box Width @ Floor (in): 54.4
• Cargo Box Width @ Wheelhousings (in): 40.4
• Cargo Box (Area) Height (in): 16.4
• Tailgate Width (in): 54.4
• Cargo Volume (ft³): 37.4
• Ext'd Cab Cargo Volume (ft³): 22.2
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.3
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 54.6
• Front Hip Room (in): 52.8
• Second Head Room (in): 36.1
• Second Leg Room (in): 41.2
• Second Shoulder Room (in): 15.8
• Second Hip Room (in): 19.5
• Summary

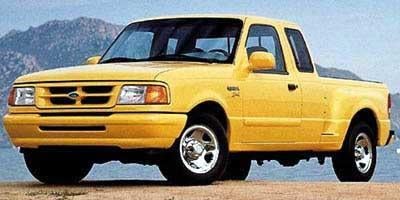

• Vehicle Name: Ford Ranger
• Body Style: Supercab 6'
• Body Code: 125.4" WB
